Non Metallic Shock Free Panel
Junction Boxes

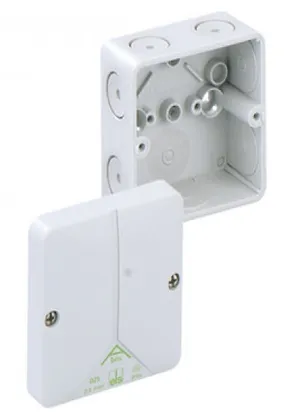

Cape Electric’s junction boxes are constructed from halogen-free, fiber-reinforced polycarbonate for outdoor use and polystyrene for indoor applications, both featuring an IP65 rating. For extreme conditions, such as underwater or buried installations, IP68-rated junction boxes are available. These boxes accommodate cable sizes ranging from 0.25 sq mm to 240 sq mm. A key feature of Cape Electric junction boxes is their side-mounted terminals, which range from 6 sq mm to 35 sq mm. This design offers more space for cable termination and facilitates easier connections with aluminum cables.
Application IP65 Boxes:
Street Poles, Industrial, commercial etc.
Application IP68 Boxes:
Gardens, Swimming pools, Shipyards etc.
Benifits
- Self Sealing Membranes in small Junction Boxes. No need of Glands. IP 65 Quick and safe assembly.
- Cable entry through back - Easy for pole mounting application.
- Break-proof, self-extinguishing thermoplastic of high quality and perfect finish.
- Can be used under harsh and corrosive environment, acid and gasoline resistant.
- Halogen free, Low Smoke, Non-Toxic & Silicon Free.
- Temperature Resistance – 350 C to + 800 C.
- UV resistant (Fiber reinforced PC).
- Light Weight.
IP 65 JUNCTION BOX | ||||||
OUTDOOR – POLYCARBONATE – GLASS FIBRE REINFORCED | INDOOR – POLYSTYRENE | |||||
# | CABLE SIZE | ENCLOSURE SIZE | WITHOUT TERMINAL | WITH TERMINAL | WITHOUT TERMINAL | WITH TERMINAL |
1 | 2.5 Sq.mm | 80 x 80 x 52 mm | ABOX I 025 L | ABOX I 025 - 2.52 | ABOX 025 L | ABOX 025 - 2.52 |
2 | 4 Sq.mm | 93 x 93 x 55 mm | ABOX I 040 L | ABOX I 040 - 42 | ABOX 040 L | ABOX 040 - 42 |
3 | 6 Sq.mm | 110 x 110 x 67 mm | ABOX I 060 L | ABOX I 060 - 62 | ABOX 060 L | ABOX 060 - 62 |
4 | 10 Sq.mm | 140 x 140x 79 mm | ABOX I 100 L | ABOX I 100 - 102 | ABOX 100 L | ABOX 100 -102 |
5 | 16 Sq.mm | 182 x 180 x 111 mm | TK PC 1818-11 | CJB 008PC | TK PS 1818-11 | CJB 008PS |
6 | 25/35 Sq.mm | 254 x 180 x 111 mm | TK PC 2518-11 | CJB 009PC | TK PS 2518-11 | CJB 009PS |
7 | 50 Sq.mm | 361 x 254 x 111 mm | TK PC 3625-11 | CJB 010PC | TK PS 3625-11 | CJB 010PS |
IP 68 JUNCTION BOX | |||
# | CABLE SIZE | ENCLOSURE SIZE | WITHOUT TERMINAL |
1 | 2.5 Sq.mm | 80 x 80 x 52 mm | ABOX XT 025 -2.52 |
2 | 4 Sq.mm | 93 x 93 x 55 mm | ABOX XT 040 -42 |
3 | 6 Sq.mm | 110 x 110 x 67 mm | ABOX XT 060 -62 |
4 | 10 Sq.mm | 140 x 140x 79 mm | ABOX XT100 -102 |
