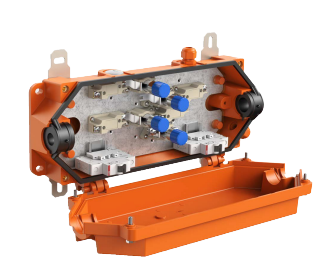

Junction boxes with fire function guarantee (survival guarantee) E30 /E60 / E90 (acc. to DIN 4102)
Rapid Box for Tunnel
- 90 mins Fire Survival
- VDE tested. IP66/67, IK09
- Pressure and Suction tested according to the specification of Alp transit Gotthard AG
- Halogen free
- Tested according to DIN 4102 part 12 by MPA Dresden VDE (DIN EN 60670-1 & EN 60670-22)
E30 – E90, IP66, IK08 – INTRINSIC FIRE RESISTANCE BOX – FUNCTIONAL GUARANTEE BOXES | ||
ENCLOSURE SIZE | MODEL | DETAILS |
Rapid-Box HT 16² | WKE Rapid-Box HT 1x3 16² 1F | rated current 63A. Fuse and feedback-free junction 3-pole to 2.5²mm, fuse protection with 1 x circuit breaker, Single pole B16, pre-wired. Sealing area, main cable: 17-22mm |
Rapid-Box HT 16² | WKE Rapid-Box HT 2x3 16² 2F | rated current 63A. Fuse and feedback-free junction 4-pole to 2.5²mm, fuse protection with 2 x circuit breaker, Single pole B16, pre-wired. Sealing area, main cable: 17-22mm |
Rapid-Box HT 50² | WKE Rapid-Box HT 1x3 50² 1F | rated current 100A. Fuse and feedback-free junction 3-pole to 2.5²mm, fuse protection with 1 x circuit breaker, Single pole B16, pre-wired. Sealing area, main cable: 21 - 26mm |
Rapid-Box HT 50² | WKE Rapid-Box HT 2x3 50² 2F | rated current 100A. Fuse and feedback-free junction 3-pole to 2.5²mm, fuse protection with 2 x circuit breaker, Single pole B16, pre-wired. Sealing area, main cable: 21 - 26mm |
E30-E90, IP66, IK08 – INTRINSIC FIRE RESISTANCE BOX FOR TUNNEL | ||
RANGE | MODEL | DETAILS |
WKE 6T WITH D01 | WKE 6 T 1D01 | 5-pole 1.5 - 16 mm², fuse in branch 1 x socket D01 (without insert), per pole 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16² |
WKE 6 T 2D01 | 5-pole 1.5 - 16 mm², fuse in branch 2 x socket D01 (without insert), per pole 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16² | |
WKE 6 T 3D01 | 5-pole 1.5 - 16 mm², fuse in branch 3 x socket D01 (without insert), per pole 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16² | |
WKE 6T DUO | WKE 6 T Duo 5 x 16² | 5-pole, 1.5 - 16 mm², per pole: 20 x 1.5² / 16 x 2.5² / 12 x 4² / 8 x 6² / 4 x 10² / 4 x 16² |
